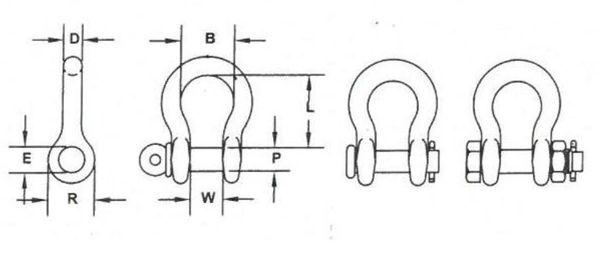

SHACKLES

Manufactured from technically advanced

domestic (U.S.A.) micro alloy steel with

optimal hardness for strength and ductility

 Shackles show major deformation before failure

 Working load limit and traceability codes

shown as permanent markings on body

 All shackles have alloy quenched and tempered pins

 Available in sizes 3/16" to 2-1/2"

 Available finishes include powder coated,

galvanized or self-colored

 Shackles meet dimensional requirements

and exceed performance requirements of RR-C-271

 Special testing and certification is available

if requested at the time of the order

 Note: Screw pin and bolt/nut/cotter

shackles have a 6:1 design factor.

2-1/2" and all round pin shackles

have a 5:1 design factor.

Anchor shackles can be

side loaded or used for multiple connections.

 High sling strength

 Longer sling life

 Strong and durable/Versatile use

 Available with and without latches

CE compliant

 5:1 design factor

 Meets or exceeds ASME B30.10 standard

Flat eye opening eliminates bunching and pinching of the synthetic sling, ensuring the sling can be used at full capacity.

Heat treated alloy steel provides strength without bulk or weight

 Pre-drilled boss allows for latch

 Shank hooks are supplied unthreaded, but can be supplied

threaded as a special order item

Shank hooks made from other material (bronze, stainless steel,

etc.) available upon request

Design factor 5:1

 Quenched and tempered alloy steel

 Long tapered point designed for easy grab in

rings, pear links, eye bolts or lifting holes

 Most useful for efficient handling of cylindrical shapes

 Durable orange powder coated finish

 Design factor 5:1

 May be loaded within 1 in. of the tip. The

working load limit with the load sitting in the bowl

(or saddle of the the hook is 7-1/2 tons, whereas

the working load limit is 2 tons if the hook is being

loaded 1 in. from the tip.

DO NOT LOAD THE

LAST ONE INCH OF THE TIP

The eye easily positions to attach to the load

 100% proof tested

Meets ASTM A952 standards

Certification of test available

Durable orange powder coated finish

 For welded 7/32" chain sling use 9/32" swivel Lodelok hook

Positive locking hook

4:1 design factor

BEARING SWIVEL

HOOKS

The load may be swiveled and turned

into position WITH or WITHOUT

the load attached.

BUSHING SWIVEL

HOOKS

The load must be swiveled and

turned into position BEFORE

attaching, lifting or moving a load.
